Erosion Control

Erosion Control

TERRAM® geosynthetics possess hydraulic and filtration properties, allowing them to be used highly effectively in place of traditional filter layers, to counter progressive erosion problems on a global scale caused by issues such as Climate Change. Typically, a single layer of geotextile fabric can replace a succession of stone filter layers.


Market Sectors

Coastal & Waterways

Typical applications include:

• Coastal Protection
• Dams and Flood Defence Bunds
• River and Canal Bank Protection
• River Revetments
• Culvert Head Walls
• Structured Causeways
• Cliff Protection
• Bridge abutments
• Submerged breakwaters
• Artificial Islands

Erosion protection can be provided to a certain level by natural vegetation. However, in areas such as coastal, rivers, lakes, reservoirs, drainage ditches, flood bunds and overspill ponds where the area is prone to wave run-up, intermittent high velocity flows or with steep slopes, this is often inadequate.

The dynamic erosive force of reverse wave flow actions experienced in areas such as river and canal banks, undermines bank stability and affects channel flow and navigability.

Terram Geotexitles are highly effectively when used in place of traditional filter layers due to their hydraulic and filtration properties.
A single layer of Terram geotextile fabric can typically replace a succession of stone filter layers and, with a single bedding layer of stone laid on the geotextile, can carry the rock armour that resists erosion caused by variable hydraulic forces.

Design Considerations

• Soil conditions
• Hydrology
• Hydrogeology

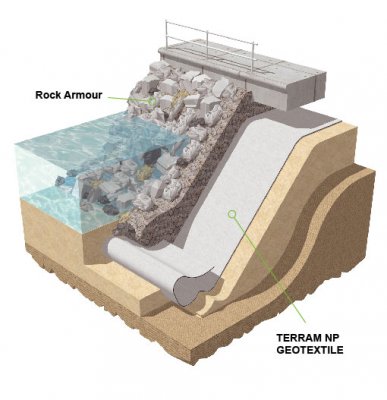

Terram geotextiles in coastal ersosion control
 Terram geotextiles in coastal ersosion controlTerram geotextiles in coastal ersosion control
 Geotextile from Terram IndiaGeotextile from Terram India


Typical applications include

• Cut or fill embankments
• Dams or spillways
• Abutment protection
• Landfill lining, covers and drainage
• Steep slopes
• Soil nailing cover.

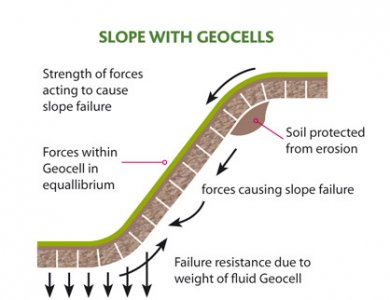

TERRAM Geocell is a blanket of three dimensional cell structures applied to a slope surface to greatly improve resistance to erosive forces such as rainwater run-off on steep or unstable slopes, or slopes exposed to severe hydraulic or mechanical stresses, and which often eliminates complicated and expensive alternative construction techniques.

The cells can be filled with a variety of infill materials depending on the application, such as topsoil, aggregates (from sands and gravels to larger stones and cobbles) and concrete of various strengths and surface finishes.

Design Considerations

• Slope angle
• Slope drainage
• Slope length
• Slope substrate
• Hydrology
• Required finish on slope



TERRAM geocells
GEOCELL & T1000 Erosion control for canal slope (Monmouth and Brecon Canal)
GEOCELL Bund System (Busk Meadows, Sheffield, UK)

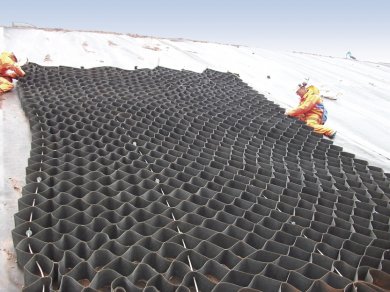

GEOCELL Lagoon Slope vegetation control (Murco Oil Refinery, Milford Haven)
